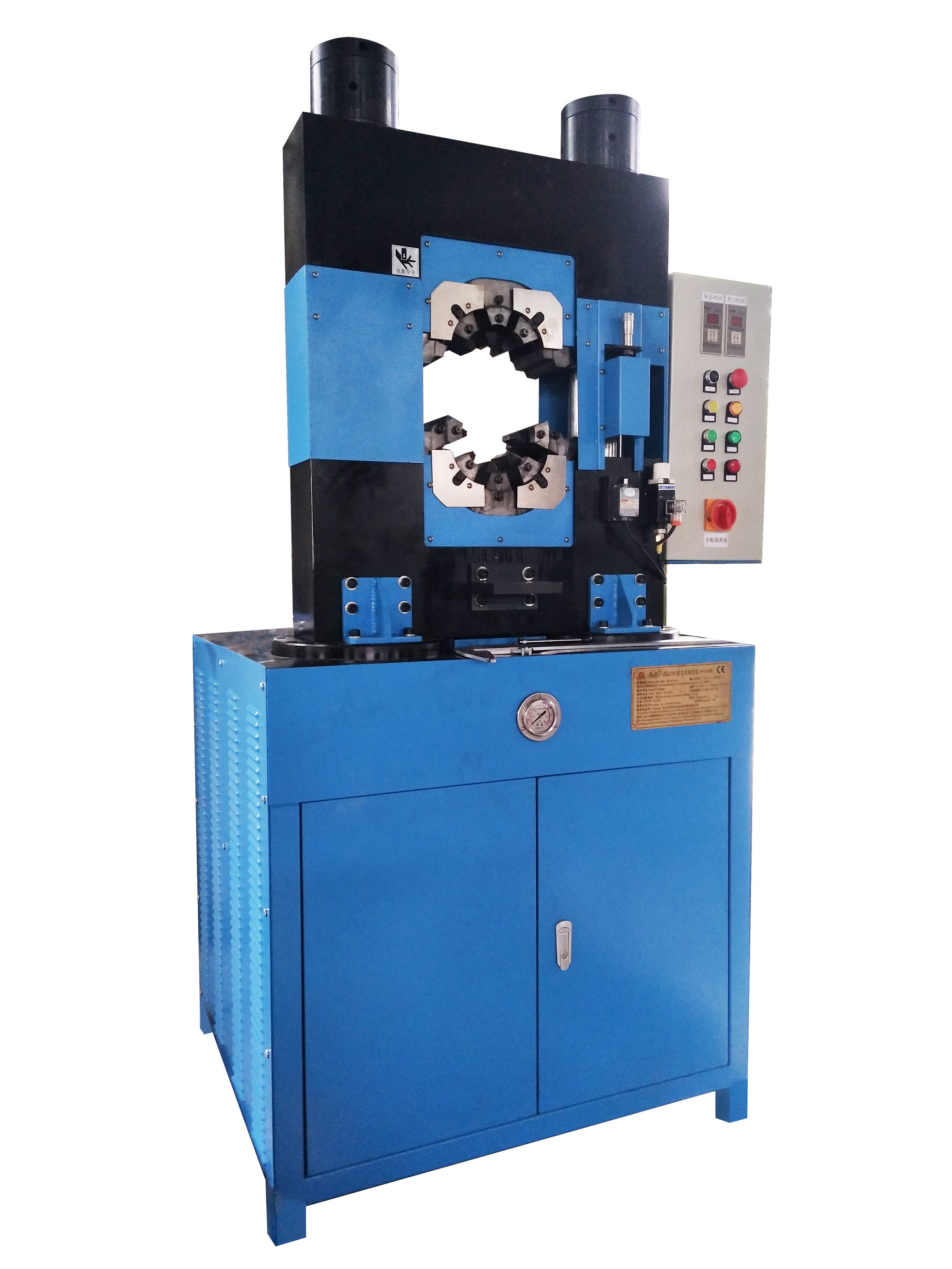

JKL500-C Large Opening Hose Crimping Machine
- Product number: 025
- Time: 2019/08/09
E-mail: sales@jinfanhyd.com
- Video
- Inquiry
Technical Specifications
|
Crimping Force（kN） |
5000/500（Ton） |
Hose Internal Size（m） |
4~127 |
Motor Power（kW） |
5.5 |
|
Standard Voltage |
380V,（3ph） |
Oil Pressure（MPa） |
31.5 |
Opening（mm） |
+226 |
|
Weight Without Oil（kg） |
1300 |
Dies（sets） |
16 |
|
|
Dimensions
|
Length（mm） |
975 |
Width（mm） |
905 |
Height（mm） |
1750 |
Performance
■Both MS control and pressure control, can crimp glass tube
■Meet the CE standards from TUV SUD group．
■Automatic or foot pedal opening and closing control．
■High production capacity thanks to adjustable opening diameters and holding times．
■Slim style and large opening，max opening without dies is 371mm, particularly for the ultra big double-elbow hoses assemblies．
■Allows to crimp 5”hoses
■The crimping force up to 5000KN，with the ability to crimp 6 wire spirals and connecting steel threaded pipe．
Applicable Product Range
|
Hose Type |
Max．Hose Size |
|
2 wire braids or textile |
5”（5 inch） |
|
4 wire spirals |
3”（3 inch） |
|
6 wire spirals |
2 ”（2 inch） |
JKL500 The Slim Electric Crimper一一Standard Die Sizes
|
Die No． |
14 |
17 |
20 |
24 |
29 |
33 |
38 |
43 |
48 |
54 |
60 |
70 |
85 |
100 |
115 |
130 |
|
Crimping Range（mm） |
15-19 |
19-23 |
23-28 |
27-32 |
31-37 |
37-42 |
41-48 |
47-54 |
53-60 |
59-70 |
68-78 |
77-91 |
91-108 |
106-127 |
123-141 |
138-156 |
|
Die Length（mm） |
45 |
60 |
60 |
60 |
60 |
75 |
75 |
75 |
90 |
90 |
100 |
100 |
110 |
120 |
125 |
129 |
